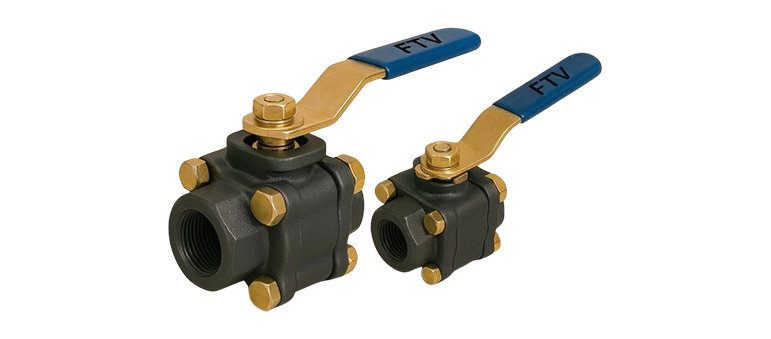

3 Pieces Forged Steel Ball Valve
| Materials | ||||
|---|---|---|---|---|
| Item | Qty | Description | K809 SGSGV KRB809 SGSGV | K806 SGSGV KRB806 SGSGV |
| 1 | 1 | Body | A350 LF2/A105 | A182 F316L/F316 |
| 2 | 2 | Side Piece | A350 LF2/A105 | A 182 316L |
| 3 | 1 | Ball | AISI | 316 |
| 4 | 2 | Seats | PTFE+CG (S) | |
| 5 | 1 | Stem | AISI | 316 |
| 6 | 1 | Stem seals | PTFE+CG (S) | |
| 7 | 1 | Packing ring | Graphite (G) | |
| 8 | 1 | Gland packing | AISI | 316 |
| 14 | 2 | Body seal 1 | PTFE+CG (S) | |
| 15 | 4 | Body bolt | A320 L7M | A193 B8M |
Full Bore
| Size | Class | A | B | D | F | G | H | L | L, | L, | c | J (min.) | Weight Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4" | 800 | 1/4" | 19 | 11 | 31 | 82 | 145 | 75 | 75 | 275 | 14.5 | 9.5 | 1.0 |
| 3/8" | 800 | 3/8" | 19 | 11 | 31 | 82 | 145 | 75 | 75 | 275 | 18 | 0.5 | 1.0 |
| 1/2" | 800 | 1/2" | 21 | 15 | 34 | 85 | 145 | 80 | 80 | 280 | 22 | 9.5 | 1.2 |
| 3/4" | 800 | 3/4" | 28 | 21 | 39 | 101 | 180 | 100 | 100 | 300 | 27.5 | 12.5 | 2.2 |
| 1" | 800 | 1" | 37 | 25 | 38 | 105 | 180 | 110 | 110 | 310 | 34 | 12.5 | 3.1 |
| 1 1/4" | 800 | 1 1/4" | 44 | 32 | 41 | 108 | 180 | 120 | 120 | 320 | 43 | 12.5 | 4.5 |
| 1 1/2" | 800 | 1 1/2" | 51 | 38 | 47 | 110 | 233 | 140 | 140 | 340 | 49 | 12.5 | 5.5 |
Reduced Bore
| NPS | Class | A | B | D | F | G | H | L | L, | L, | c | J (min.) | Weight Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 800 | 1/2" | 19 | 11 | 31 | 82 | 145 | 75 | 75 | 275 | 22 | 9.5 | 1.0 |
| 3/4" | 800 | in | 21 | 15 | 34 | 85 | 145 | 80 | 80 | 280 | 27.5 | 12.5 | 1.2 |
| 1" | 800 | 1" | 28 | 21 | 39 | 101 | 180 | 100 | 100 | 300 | 34 | 12.5 | 2.2 |
| 1 1/4" | 800 | 11/4" | 37 | 25 | 38 | 105 | 180 | 110 | 110 | 310 | 43 | 12.5 | 3,1 |
| 1 1/2" | 800 | 1 1/2" | 44 | 32 | 41 | 108 | 180 | 120 | 120 | 320 | 49 | 12.5 | 4,5 |
| 2" | 800 | 2" | 51 | 38 | 47 | 110 | 233 | 140 | 140 | 340 | 61.5 | 16 | 5.5 |
