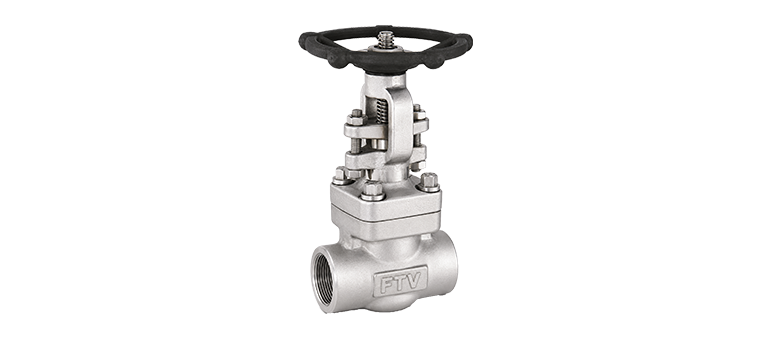

Forged Steel Gate Valve
| Size | 1/4” (6 mm) to 2” (50 mm) |
|---|---|
| Class | 800# / 1500# / 2500# |
| End | Threaded / Socket Weld / Butt Weld Ends |
| Design | API-602 / BS 5352 / B 16.11 / B 16.25 |
| Features | Bolted / Welded Bonnet |
| *Special Material & Higher Size/Class Valves also available on request. | |
| TESTING PRESSURE | ||||
|---|---|---|---|---|
| TESTING | HYDRAULIC | PNEUMATIC | ||
| 800# | 1500# | 2500# | ||
| BODY | 3000 PSIG | 5400 PSIG | 9060 PSIG | - |
| BACK SEAT | 2200 PSIG | 4075 PSIG | 6800 PSIG | - |
| SEAT | 2200 PSIG | 4075 PSIG | 6800 PSIG | 80 PSIG |
| SIZE | L | H | H1 | OWH | SCR. ENDS | SW. ENDS | |||
|---|---|---|---|---|---|---|---|---|---|
| OD | |||||||||
| OC | E | Max. | Min. | F(Min.) | |||||
| 15 | 85 | 152 | 165 | 90 | 1/2" | 13.56 | 22.22 | 21.72 | 9.65 |
| 20 | 92 | 161 | 176 | 90 | 3/4" | 13.87 | 27.56 | 27.05 | 12.7 |
| 25 | 105 | 175 | 198 | 90 | 1" | 17.35 | 34.29 | 33.78 | 12.7 |
| 40 | 127 | 240 | 278 | 145 | 1.1/2" | 18.38 | 49.15 | 48.64 | 12.7 |
| 50 | 140 | 255 | 298 | 145 | 2" | 19.23 | 61.62 | 61.11 | 15.75 |
| SIZE | L | H | H1 | OWH | SCR. ENDS | SW. ENDS | |||
|---|---|---|---|---|---|---|---|---|---|
| OD | |||||||||
| OC | E | Max. | Min. | F(Min.) | |||||
| 15 | 92 | 161 | 176 | 90 | 1/2" | 13.56 | 22.22 | 21.72 | 9.65 |
| 20 | 105 | 175 | 198 | 90 | 3/4" | 13.87 | 27.56 | 27.05 | 12.7 |
| 25 | 127 | 240 | 278 | 145 | 1" | 17.35 | 34.29 | 33.78 | 12.7 |
| 40 | 140 | 255 | 298 | 145 | 1.1/2" | 18.38 | 49.15 | 48.64 | 12.7 |
